Aluminium Tube Wire 25 Mm Diameter Strip Steel Wheel Rim Flash Butt
Welding Machine
Product Introduction:
A butt welding machine is a device that uses the principle of
friction heating to heat two or more metal parts through friction
and apply a certain pressure to melt them and achieve welding.
Welding machines are mainly used for welding difficult to weld
materials such as aluminum alloys, magnesium alloys, and titanium
alloys. Its advantages include high welding strength, low
deformation after welding, and the ability to weld difficult to
weld materials.
Features:
1. Water cooling tube: Rapid cooling and temperature reduction work
efficiency is higher.
2. Double bar pressurization: The pneumatic lever pressurization
welding joint is beautiful, firm, and has less slag inclusion.
3. Linear bearings: The welding machine adopts precision linear
bearings with zero wear.
4. All copper electrode block: Chromium copper has high
conductivity and thermal conductivity, high hardness, compressive
strength, and resistance to explosion.
Technical Parameters:
| Item/Model | | DN-40 | DN-63 | D(T)N-80 | D(T)N-100 | D(T)N-125 | D(T)N-160 | D(T)N-200 |
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 |
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 |
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 |
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 |
| Throat | MM | 500 | 500 | 630 | 630 | 630 | 630 | 630 |
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 |
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 |
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 |
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 |
Max.Welding Capaciry A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 |
Detailed Images:
Stable Pressure Application
The direct pressure integrated pressure application mechanism has
good follow-up and does not slip during workpiece welding, with
stable speed.
Easy To Operate
Using a microcomputer controller, it can analyze, adjust and
control the welding process parameters of the welding machine, and
the operation is simple.
Copper Alloy Electrode
Made of high-quality materials such as chromium zirconium copper,
it has good conductivity and can be used with confidence.
Scence Images:

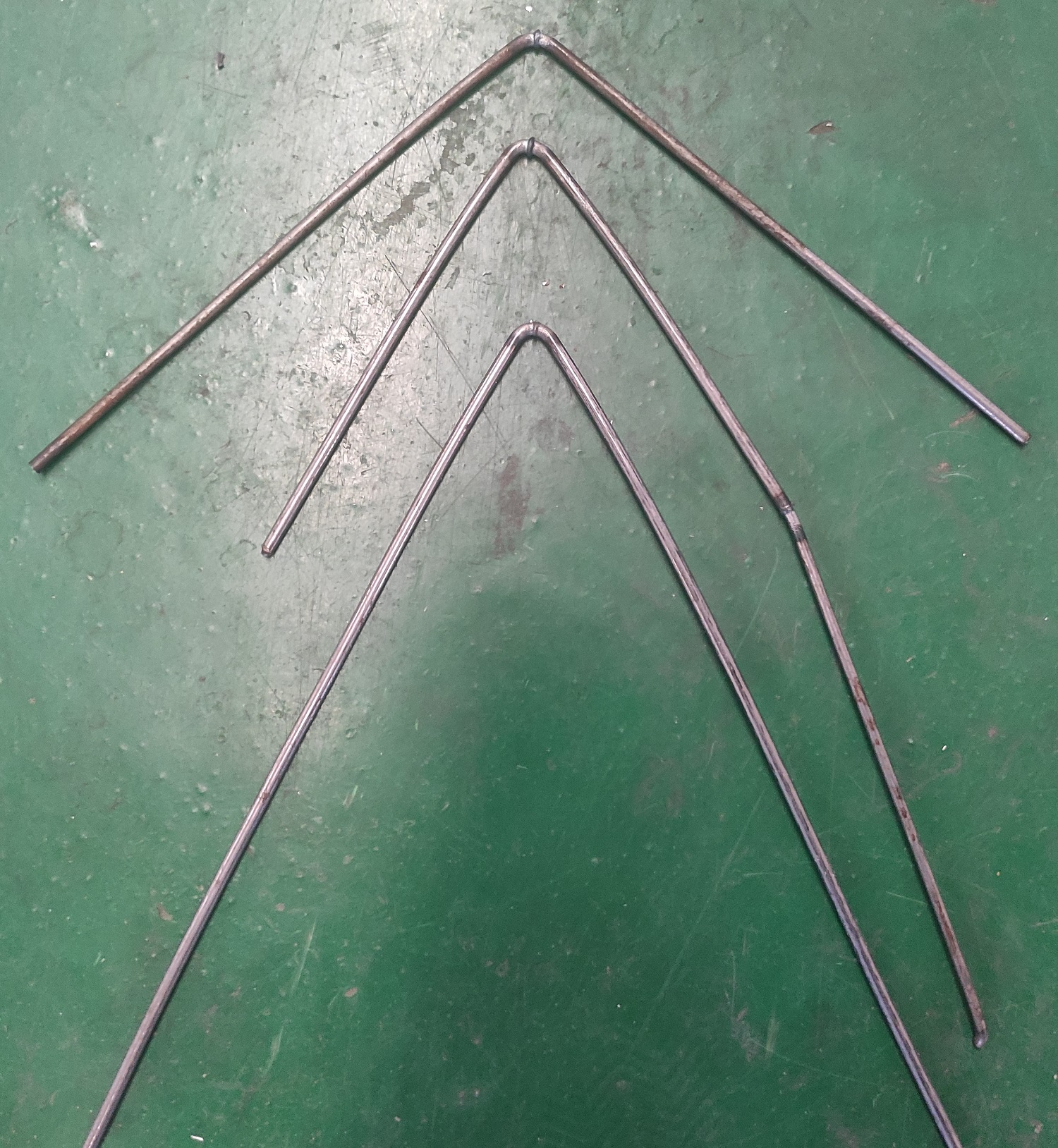

Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized
machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection
by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can
provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to
send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
