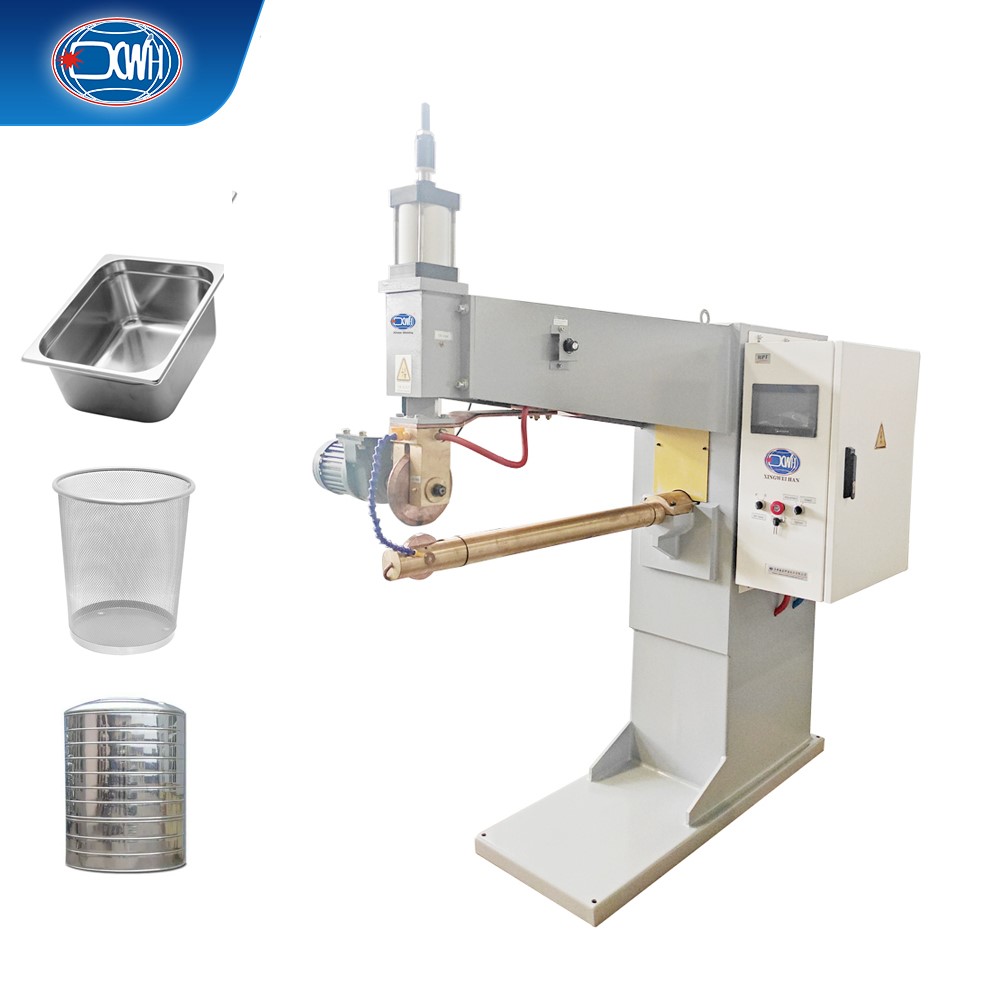

Linear Longitudinal Circular Straight Seam Seaming Air Duct Stitch
Welder Machine
Product Introduction:
The seam welding machine is simultaneously equipped with both
horizontal and vertical seam welding functions, simply switch the
direction of the upper electrode wheel and replace the lower
electrode arm. The roll seam welding machine is widely used for
thin plate welding of sealed containers in oil drums, cans,
radiators, aircraft and car fuel tanks, rockets, and missiles. The
general welding thickness is within 3mm of the single board.
Technical Parameters:
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Features:
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of
the welding wheel.
3.The rotating part is embedded silver tile structure, the
conductive seat is fully sealed and lubricating, which improves the
conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel
tank and other manufacturing industries industry.

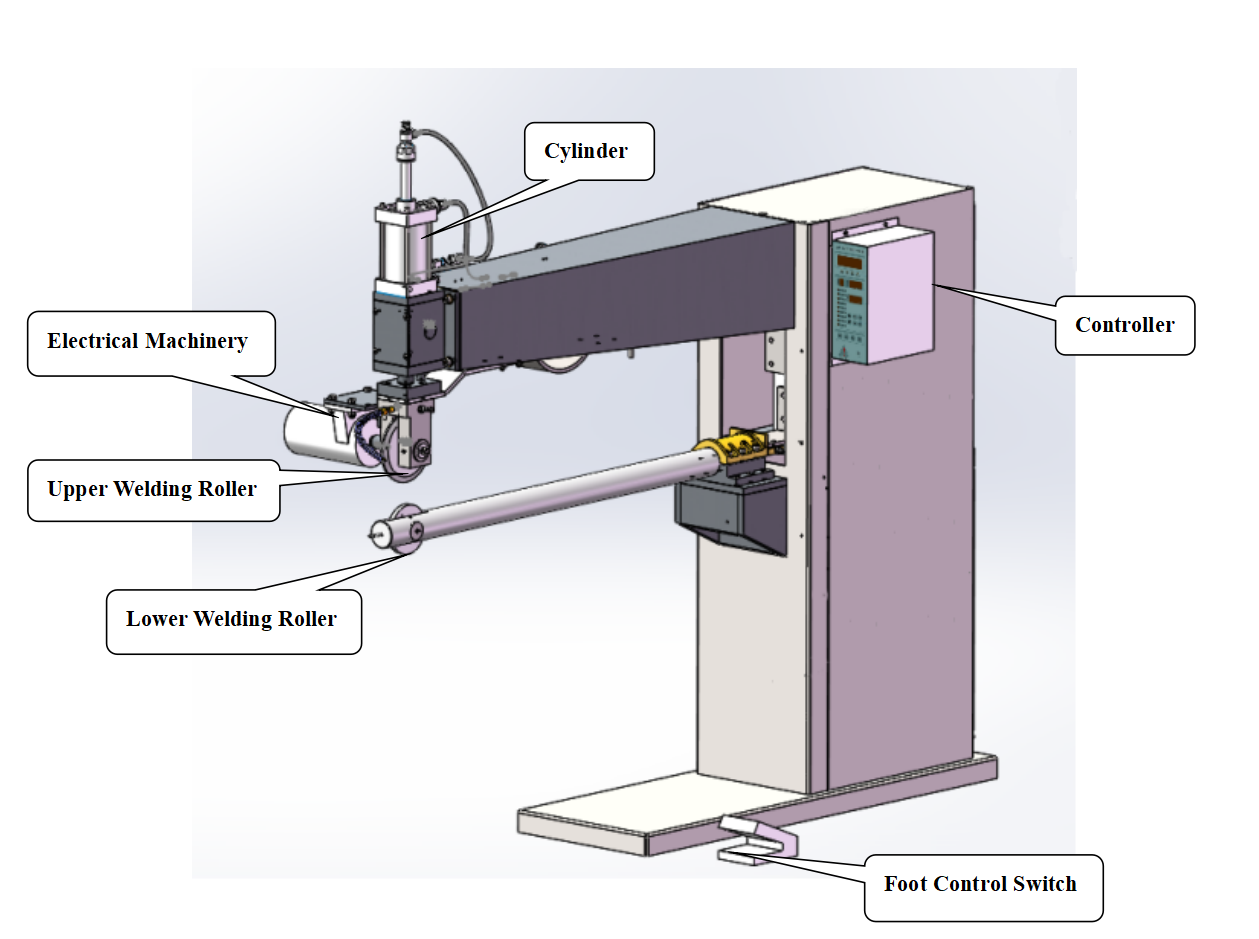

General Structures:
BOTH HORIZONTAL SEAM WELDING AND VERTICAL SEAM WELDING FUNCTIONS
Just changing the direction of the upper electrode wheel and
replacing the lower electrode arm, it is easy to switch between the
two welding methods.
Detail Images:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to
your requirements.
