Welding Supply Wholesale Spot Welding Copper Electrodes For
Capacitor Spot Welder
Product Description
The spot welding electrode material is usually chromium zirconium
copper (CuCrZr), which has high conductivity, high hardness, long
service life, less loss of current power through the electrode, and
is not easy to soften at high temperature.
Technical Parameters
Product Name | Spot Welding Copper Electrodes Cap |
Samples | Provided, please contact us. |
OEM | Accept Customized |
Material | CuCrZr, CuBe2, or According to requirements |
Material no. UNS (ASTM) | C18150, C17200, or According to requirements |
Material description | Age hardenable Cu alloy with high electrical and thermal
conductivity under a high degree of hardness and strength. |
Size | According to customer's requirements |
Application | Spot Welding |
Advantages
1. High conductivity: less current loss of the electrode.
2. Hardness: thermo stability and long life span.
3. High quality material: high quality, each welding point is small
and firm.
4. High resistance to melt: meeting the requirements of the coating
of welding, resistance welding depth of coating adhesion.
5. Overall performance: improving electrode performance,
reliability and strong welding, soldering strong adaptability.

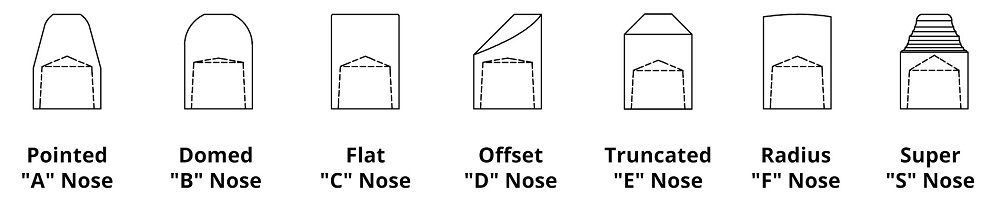

Different Types of Caps Tips
Pointed
The A nose or Pointed face tip is a general purpose weld face
suitable for most spot welding applications.
Dome
The B nose or Dome face tip is the most commonly used weldface
because the design accommodates modest misalignment problems as
contact can still be made on the radius during welding.
Flat
The C nose of Flat face tip is frequently used as a backup
electrode for projection welding, cosmetic welds, or to control
heat balancing of the weld by controlling the current density.

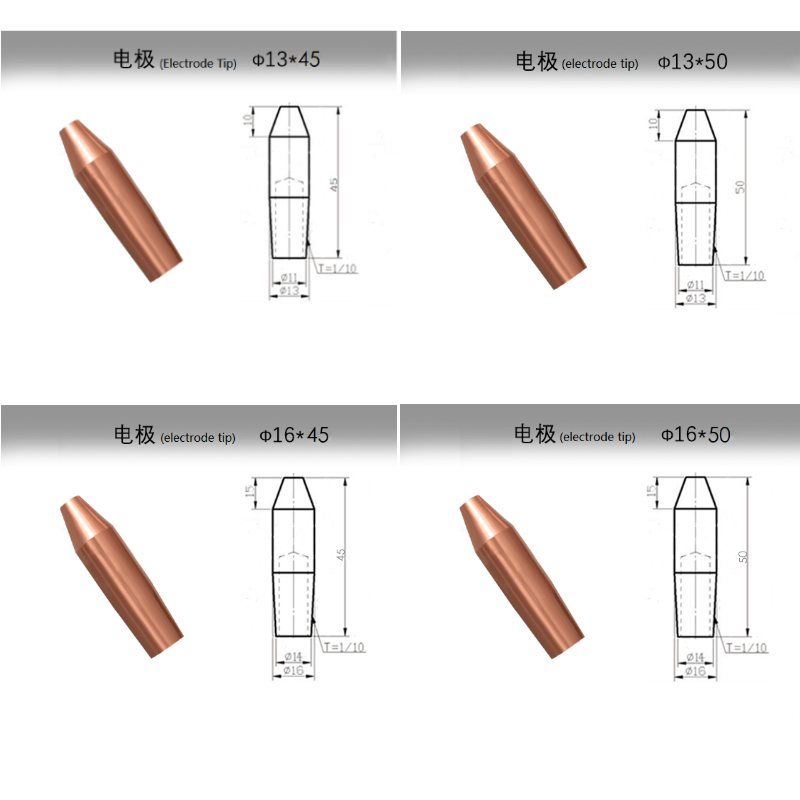

General Types
Images
Please note: the electrode cap tip can be custom-made according to
your requirements.
