Product Description
The portable spot welding machine uses the resistance heat
generated by the current flowing through the weldment as a heat
source for welding under pressure. Mainly used for spot welding of
low-carbon steel parts of thin plate structures.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 168-288 | 100 | 168-328 | 100 | 168-428 | 100 |
| Max.strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM | 70 | 50 | 100 | 50 | 100 | 50 |
| Max. arm length | MM | 750 | 350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to
customers' requests.
Features:
1. Convenient operation and power-saving.
2. The cylinder is a customized pressurized cylinder, the brand is
(SMC).
3. The portable spot welders can rotate 360°as the turntable is
configured with bearings.
4. Customized welding tongs, the longest welding arm is 1300mm and
the shortest is 220mm.
5. Different specifications can be set (workpieces with different
thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm.
Application:
The portable spot welding machine is widely used in automobile
manufacturing, maintenance, household appliances, doors and
Windows, agriculture, construction steel and other metal
manufacturing industries.

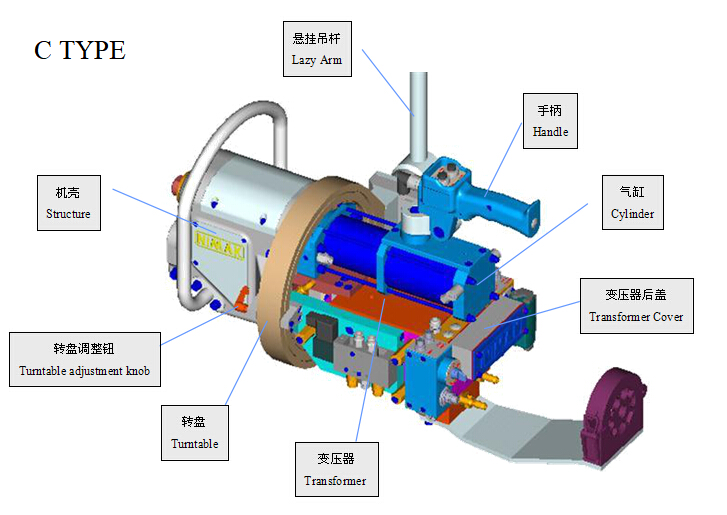

General Structures
Mutiple Electrode Arms
Power Frequency Controller
1. The welding process achieves closed-loop control, ensuring
constant welding current in the event of voltage fluctuations in
the power grid and changes in welding load.
2. The control methods include constant current mode and constant
voltage mode.
3. During the welding cycle, the duration of various processes such
as pressure delay, pressure increase, welding, cooling, holding,
and rest is set by the program without error.
4. It has single point and continuous point welding functions, and
has three pulse (preheating, welding, tempering) functions for
double-sided galvanized plate welding.
