Mini Spot Welding Machine Small Portable Hand Held Handheld Welder

Mini Low Price Spot Welding Machine Small Portable Hand Held Handheld Welder

Product Description

The mobile spot welding machine is a resistance welding machine and the principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding torch is connected with a welding wire, and the ground wire is connected to the copper plate. The workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.

Technical Parameters

Model Parameter	DNY-80	DNY-50	DNY-35	DNY-25	DNY-16
Rated power	80KVA	50KVA	35KVA	25KVA	16KVA
Rated input power	380V	380V	380V	380V	380V
Rated primary current	211A	132A	92A	66A	42.1A
Rated duty cycle	10%	10%	10%	10%	10%
Secondary unload voltagea djustment	9.5～19V	7.6～15.2V	7.6～12.7V	7.6～12.7V	6.2～11V
Adjustment level	2	2	1	4	4
Welding time adjustment	0～250CYC	0～250CYC	0～250CYC	0～9.99s	0～9.99s
Secondary cable length	2m	2m	2m	2m	2m
Welding thickness	(0.2~1.5)+4mm	(0.2~1.5)+3.5mm	(0.2~1.2)+3mm	(0.2~1)+3mm	(0.1~0.6)+2mm
Cooling method	Main transformer: water cooling Electrode: water cooling

Advantages

(1)New resistance welding transformer: simple circuit, universal accessories, low failure rate and easy maintenance.

(2)New silicon steel sheet: rust resistance and corrosion resistance with long service life.

(3)Non-slip handrail: hard handle and long grip without deformation.

(4)Universal wheel: anti-skid, shockproof and wear-resistant, durable and easy to move.

(5)Save electric energy and high production efficiency.

(6)Can adapt to the welding of different positions, complex structure of the plate work.

Detail Images

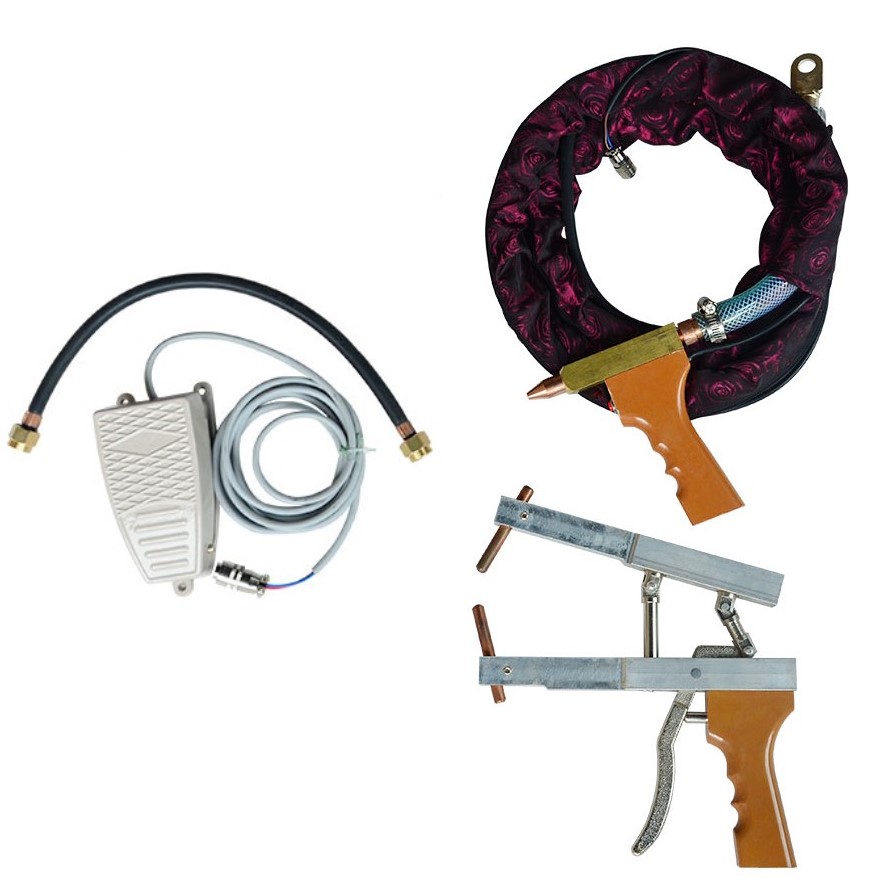

Accessories

Images

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
