Automatic Welder Wire Mesh Point Welding Machine Multi Spot Welded

Ask Lasest Price
Brand Name :	XWH
Model Number :	D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250
Certification :	CE
Price :	USD44000-USD50000
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50 sets/month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Automatic Welder Wire Mesh Point Welding Machine Multi Spot Welded

Point Multi Spot Welded Automatic Welder Point Welding Wire Mesh Welding Machine

Product Introduction

The 17 head steel bar welding machine is equipped with a semi-automatic welding equipment suitable for 6MM series steel bars, with simple operation and high productivity.

Technical Parameters

Models/Item	DN(B)-100	D(N)B--160	D(N)B--200	D(N)B--250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current(KA)	30	40	40	45
Max. force (N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max.welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

Advantages

1. The cnc rebar wire mech welding machine with 17 welding heads adopts 3 welding steps with 6 welding points each time, and then automatically advances to the next row of welding points until all welding points are completed. The entire process is fully automatic controlled by PLC, equipped with monitoring and alarm.

2. The multi head spot welding machine uses direct power supply from a welding transformer to the workpiece, and regularly replaces the welding head, while also having energy-saving effects.

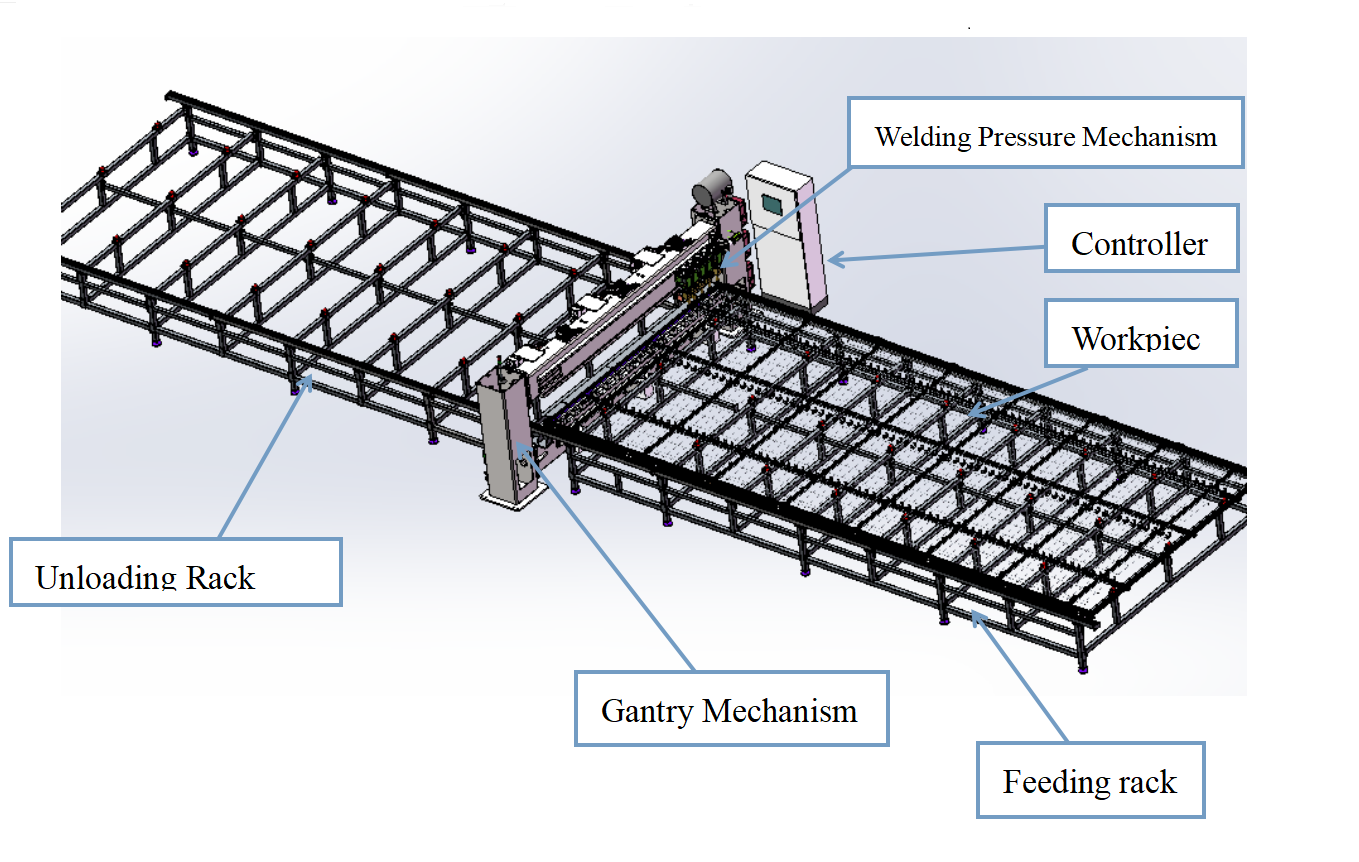

Major Structure

The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.

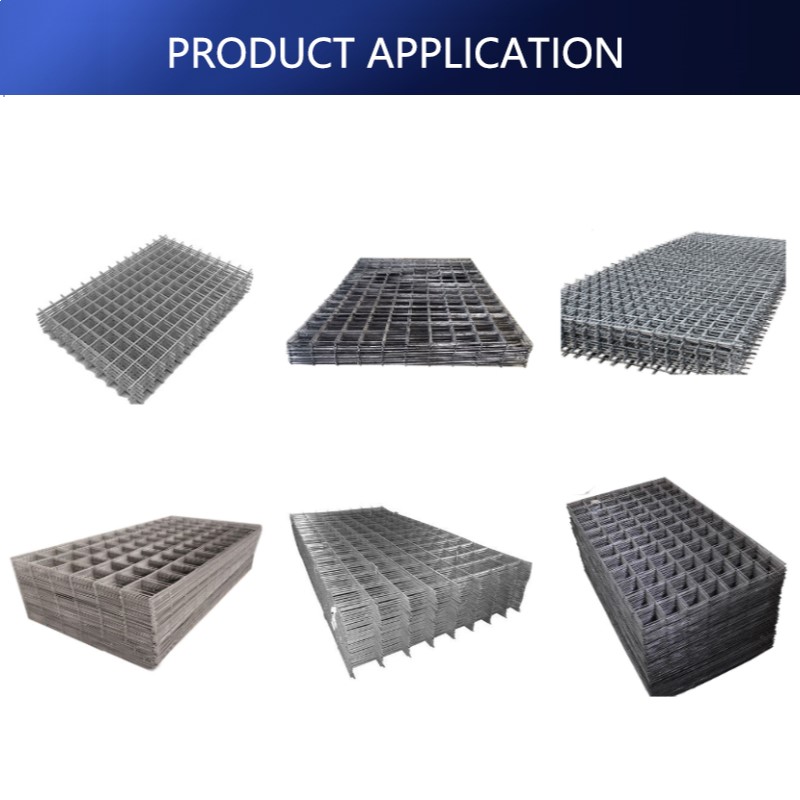

Reference Pictures

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
