Product Description

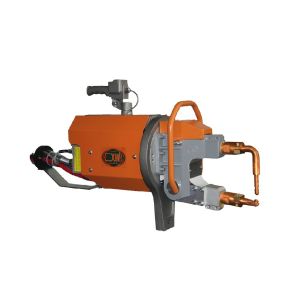

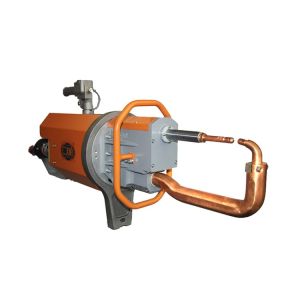

Medium frequency inverter spot projection welding machine is a set
of advanced welding equipment. Widely used, welding transformers
have a small volume and large output energy. The advantages of
portable spot welding machines used in the automotive industry are
even more evident. Its superior performance is due to the increase
in the frequency of its welding transformer from 50/60Hz to 1000Hz,
which greatly reduces the weight of the iron core material. In
addition, the rectifier diode in the secondary circuit of the
transformer converts electrical energy into DC power for welding.
This can greatly improve the value of the secondary circuit
inductance coefficient, which is an important factor leading to
energy loss and can almost be ignored in DC welding circuits,
thereby minimizing production costs.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM | 120-280 | 100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to
customers' requests.
Features:
1. The electrode pressure is reduced and the electrode life is
greatly improved.
2. Digital intermediate frequency welding can save more than 30%
energy and greatly reduce energy costs.
3. It can be used with a suspension welding machine and integrated
welding tongs.
4. Powerful welding function, providing welding quality analysis
data and monitoring.
5. Adopt three-phase balanced load and intermediate frequency
welding technology, without the need to add a capacitance
compensation cabinet.
6. Integrated modular design, the welding control system has stable
performance, high reliability, and low welding failure rate
Application: The portable spot welding machine is widely used in
the automobile, motorcycle, aviation, sheet metal structural
components, medical equipment, light industrial machinery,
household appliances and other fields. And it can welding carbon
steel sheet, coated steel sheet, stainless steel sheet, aluminum
sheet metal.
Configuration of welder
The whole set of equipment includes microcomputer resistance
welding controller, main engine, electrode arm, lifting arm, power
cable, control cable, air source processing parts, balancer, inlet
pipe, inlet and outlet pipe, etc.
Mutiple Electrode arms
Use & Installation
Spring balancer
Spring balancer (hereinafter referred to as the balancer) is a kind
of auxiliary tool specially used with hanging manual operation
tools, especially suitable for production line operation, or a
variety of station tools are heavy, heavy workload, long time
operation occasions.
After hanging the tool with a balancer, the weight of the tool and
its auxiliary devices is balanced, allowing the operator to operate
the tool easily. When the tool needs to rise and fall frequently,
it can move up and down as long as the operator exerts less force
on the tool.
1. Unique structural features make heavy manual operation easy up
and down freely.
2. The maximum working stroke of the coiling spring is 1.5 meters,
and the balance is about 1.1 meters.
3. for safety, all products are equipped with safety steel rope, in
case of hook failure.
4. When the spring breaks, the safety device will lock the tower
wheel, but the tower wheel still needs to rotate 1/4 ~ 1/2 laps.
5. the product is equipped with an indicator plate to adjust the
bearing capacity of the balancer, so as to adjust the bearing
capacity of the balancer.
6. the product is equipped with tower wheel suspension device, to
facilitate the replacement of tools.
Product Application
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized
machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection
by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can
provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to
send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
